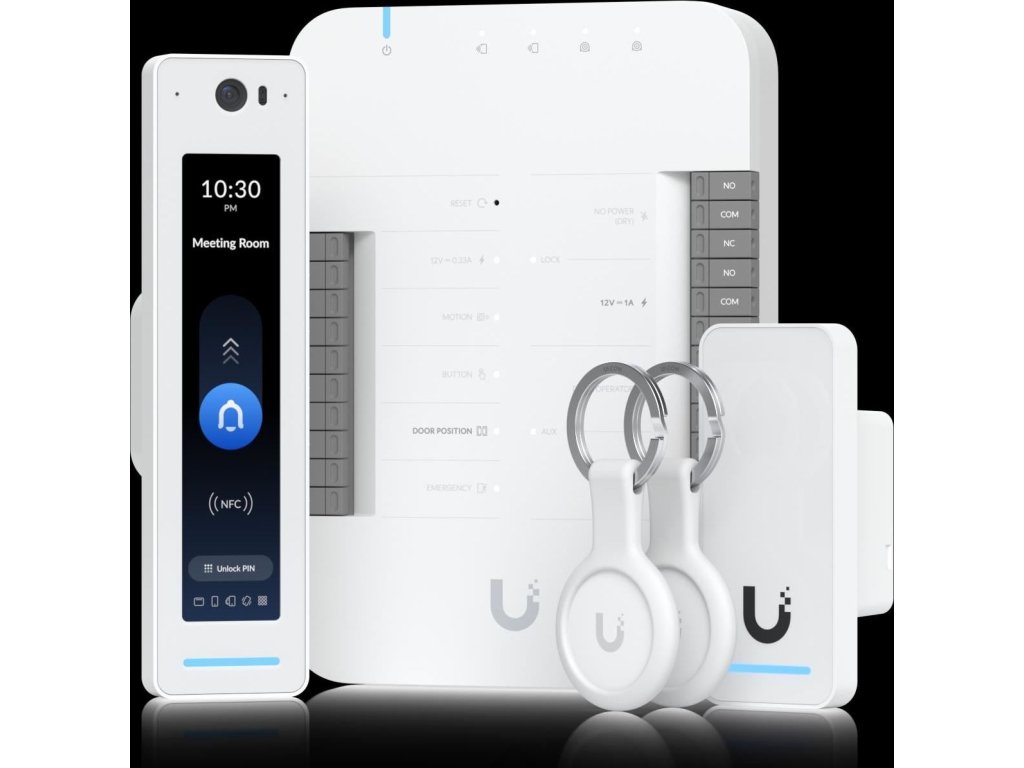

Technical Specifications

UA-Hub-Door

Mechanical

Enclosure material Polycarbonate

Mounting material Polycarbonate

Weight 363 g (12.8 oz)

Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")

Hardware

Networking interface (5) 10/100/1000 Base-T

Max. power consumption Without PoE output: 30W

With PoE output: 50W

PoE output PoE passthrough, (4) PoE, 50V DC, total 20W

LEDs System: white/blue

Output relays: white

Digital input Request to exit/request to enter/remote release/door position sensor

Dry output relay Lock: 30V DC, 1A

Aux: 30V DC, 1A

Powered output relay Lock: 12V DC, 1A

Aux: 12V DC, 0.33A

12V DC, 0.33A

Operating environment Indoor use only

Operating temperature 0 to 40° C (32 to 104° F)

Operating humidity 5 to 95% noncondensing

Software information The software version of a product can be checked in https://unifi.ui.com

UL 294 level Destructive attack: Level I

Line security: Level I

Endurance: Level I

Standby power: Level I

UL 294 statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.

The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade Grade assignment: 1

Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level UA-Hub-Door002, V01

Power method PoE++

UL 294 Power-limited Class 2 PSU

UL 60950/62368 LPS/PS2 PSU

PoE input 50V DC, 1A

Button (1) Factory-reset

Wiring Information

Typical installation (Shielded) DC power input Belden 8750 18 AWG 2 conductor (30.5 m/100 ft)

Door position switch Belden 8750 18 AWG 2 conductor (152.5 m/500 ft)

Request to exit Belden 8750 18 AWG 2 (152.5 m/500 ft)

PoE cabling requirements The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm2) for horizontal or riser cable.

Wiring gauge requirements (AWG) Total length to device Output load current at 12V DC

100mA 250mA 500mA 1A

6.1 m (20 ft) 22 22 22 18

15.2 m (50 ft) 22 22 22 18

30.5 m (100 ft) 22 22 18 18

LEDs

PoE in Steady blue: Adopted/device is ready

Steady white: Pending adoption

Blinking white/blue: Upgrading firmware

PoE out Off: Not connected or no data link

Steady blue: Connected and data link on

UA-G2-Pro

Mechanical

Dimensions 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")

Weight 136 g (4.8 oz)

Enclosure material Polycarbonate, glass

Mount material Aluminum alloy

Mounting Wall, gang box

Weatherproofing IP55

Hardware

Networking interface (1) 10/100/1,000 MbE RJ45 port

Connectivity BLE 4.2

NFC

Power method PoE

Supported voltage range 48V DC

Max. power consumption 6W

ESD/EMP protection Air: ±15kV, contact: ±8kV

Sensor ToF sensor

Camera 4000 x 3000, 12 MP, 30 FPS

Microphone Yes

Speaker (1) 4 ohm, 1.5W

LEDs R/G/B/W

Flash

Button (1) Factory-reset

NFC frequency 13.56 MHz

NFC read range < 30 mm

NFC standards ISO 14443A, 14443B, 15693

NFC technology NFC Tag 1,2,3,4,5

MIFARE Classic

MIFAREPlus

MIFARE Ultralight

MIFARE DESFire

Operating temperature -10 to 40° C (14 to 104° F)

Operating humidity 5 to 90% noncondensing

Certifications CE, FCC, IC

UA-G2

Mechanical

Dimensions 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")

Weight 82 g (2.9 oz)

Enclosure material Polycarbonate, glass

Mounting In wall, gang box

Weatherproofing IP55

Hardware

Networking interface (1) 10/100 MbE RJ45 port

Connectivity BLE 4.1

Power method PoE

Supported voltage range 48V DC

Max. power consumption 5W

ESD/EMP protection Air: ±15kV, contact: ±8kV

Sensors Proximity sensor

Speaker (1) 8 ohm, 0.7W

LEDs R/G/B/W

Button (1) Factory-reset

NFC frequency 13.56 MHz

NFC read range < 30 mm

NFC standards ISO 14443A, 14443B, 15693

NFC technology NFC Tag 1,2,3,4,5

MIFARE Classic

MIFAREPlus

MIFARE Ultralight

MIFARE DESFire

Operating temperature -30 to 45° C (-22 to 113° F)

Operating humidity 5 to 90% noncondensing

Certifications CE, FCC, IC

UA-Pocket

Mechanical

Dimensions 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")

Weight 16 g (0.56 oz)

Enclosure material Polycarbonate, stainless steel

Weatherproofing IP54

Hardware

NFC frequency 13.56 MHz

NFC technology ISO/IEC 14443 Type A

MIFARE DESFire EV3 4K

UniFi Access Proprietary Security Protocol

Operating temperature -10 to 45° C (14 to 113° F)

Operating humidity 10 to 90% noncondensing

Certification CE
