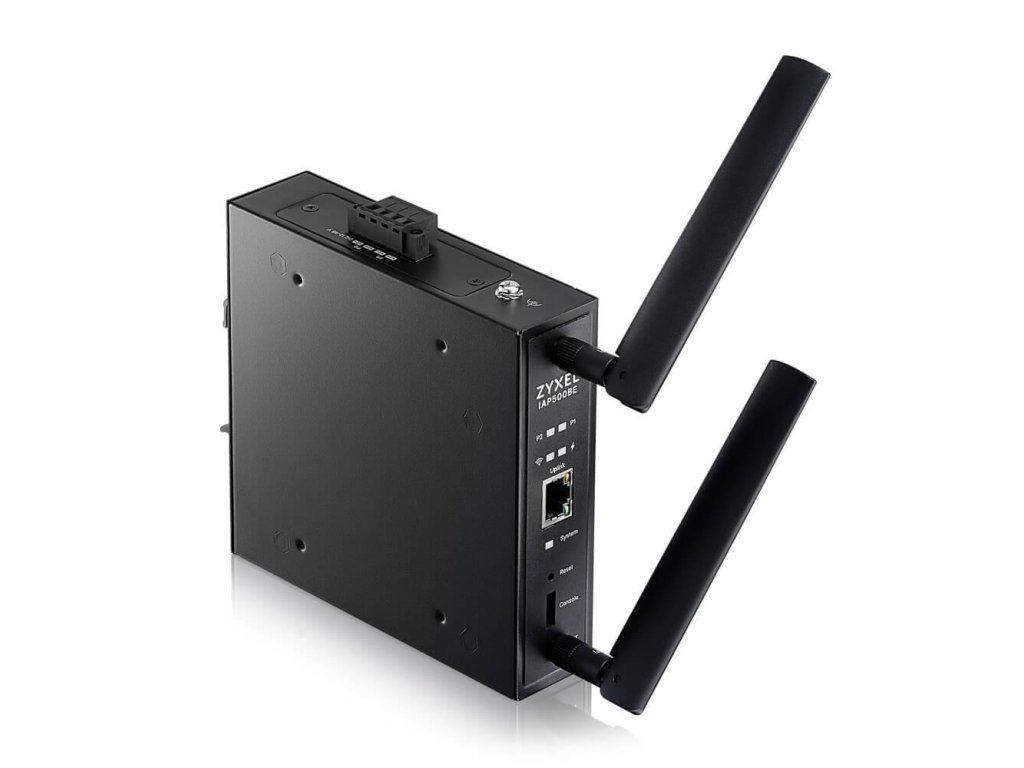

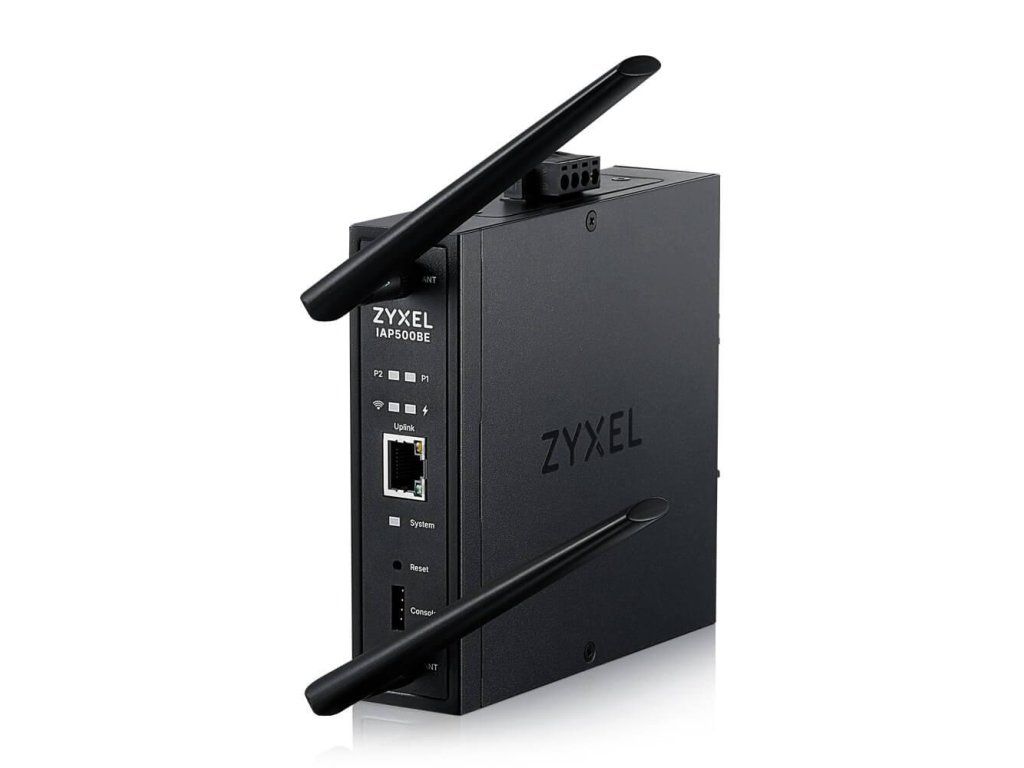

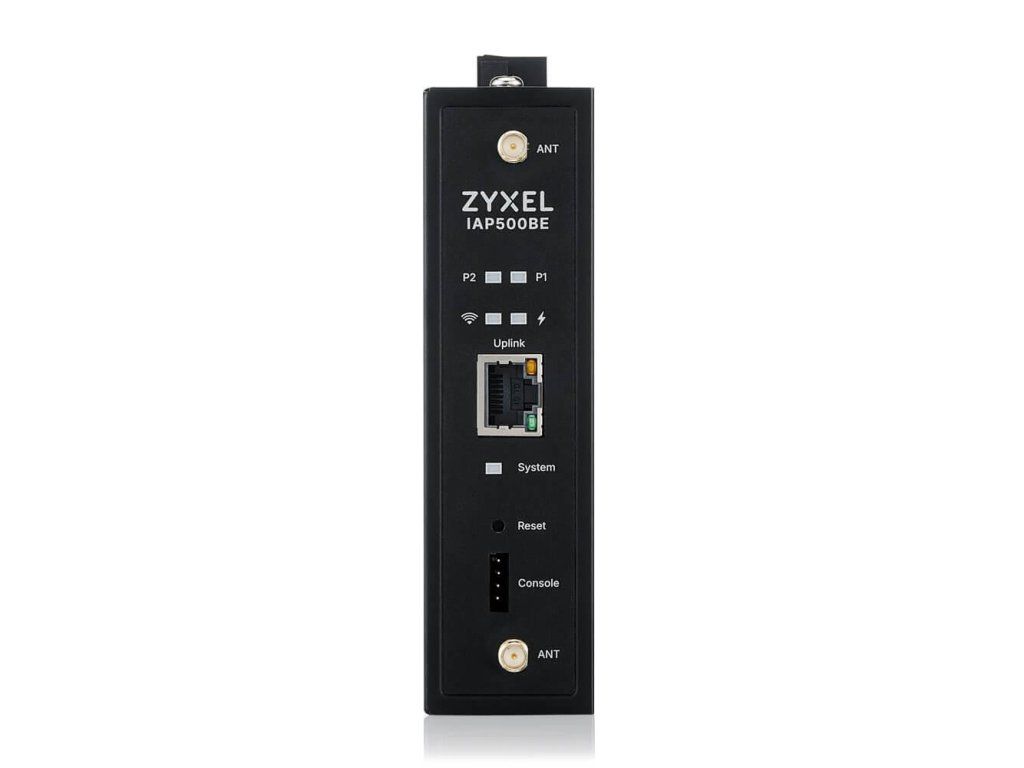

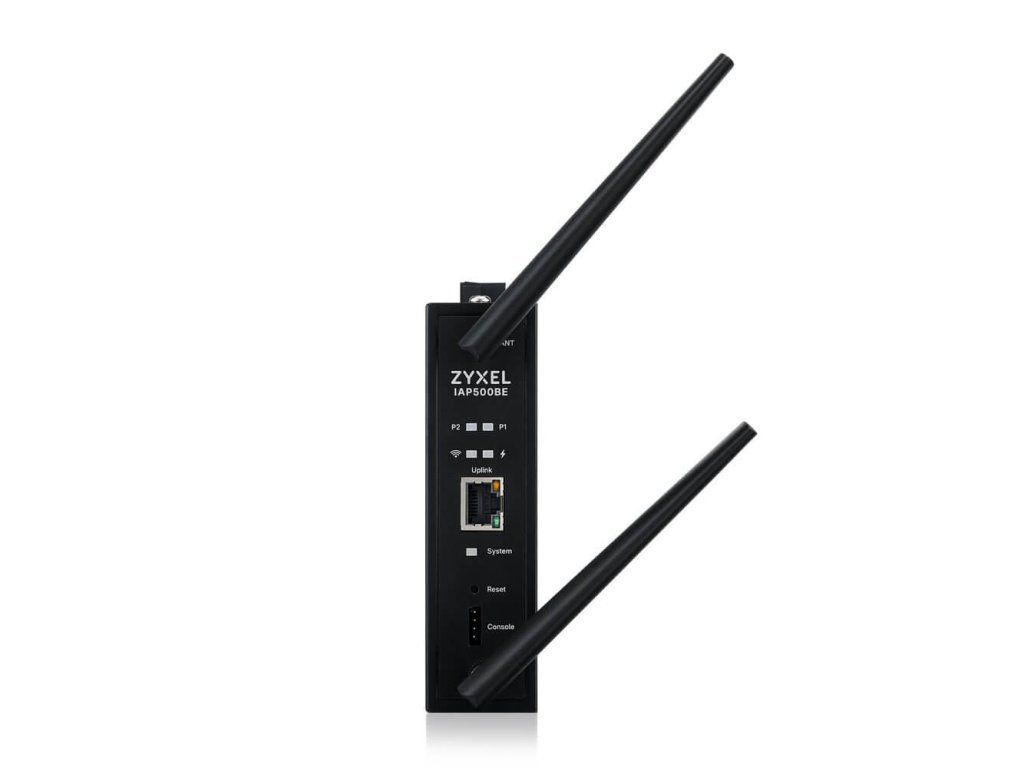

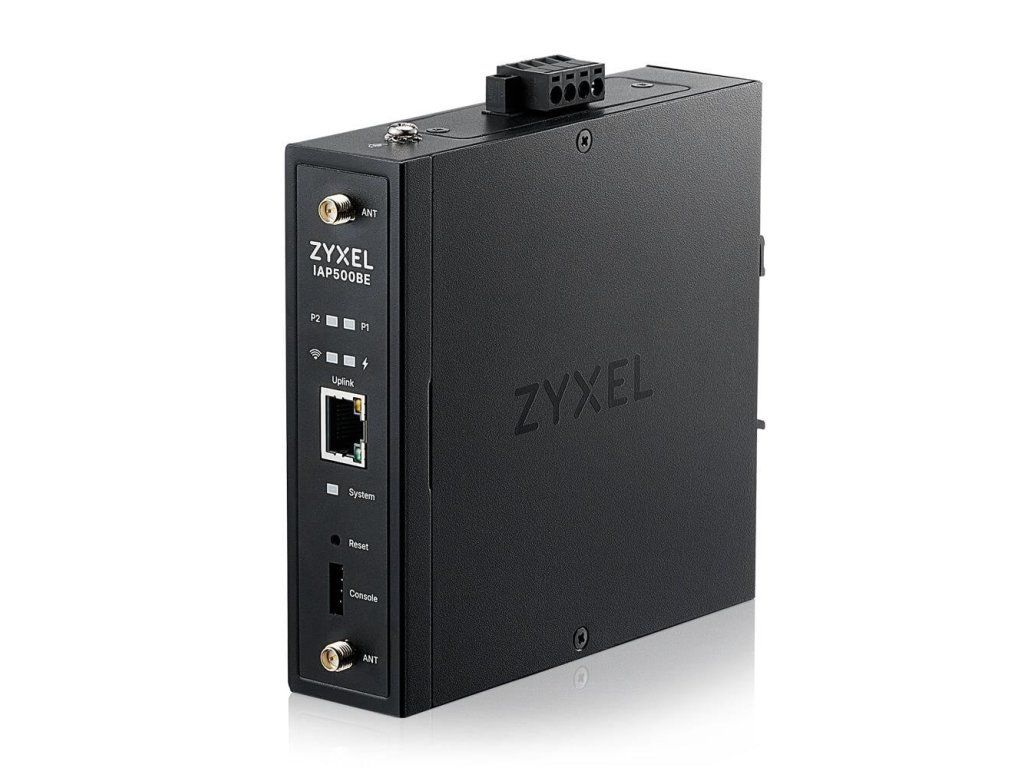

Zyxel IAP500BE, BE5000, Dual Radio 2x2 MU-MIMO, PoE+ (802.3at), Industrial AP, DIN Rail mounted Standalone/Nebula Cloud Managed, DC Power

Wireless

________________________________________

Standard

IEEE802.11 be/ax/ac/n/g/b/a

MIMO

MU-MIMO

Wireless speed

2.4GHz: 688Mbps

5GHz: 4324Mbps

Frequency band

2.4GHz:

USA (FCC): 2.412 to 2.462 GHz

Europe (ETSI): 2.412 to 2.472 GHz

5GHz:

USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz

European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

20-, 40- ,80-, 160- and 240-MHz

Conducted typical transmit output power*1

US (2.4GHz/5GHz):

25/26dBm

EU (2.4GHz/5GHz):

16/26dBm

RF Design

________________________________________

Antenna type

External Antenna

Antenna gain

2.4GHz:

2 dBi, 2x2:2SS

5GHz:

3 dBi, 2x2:2SS

Minimum receive sensitivity

Min. Rx sensitivity up to -99 dBm

WLAN Features

________________________________________

Band steering

Yes

WDS/Smart Mesh*2

Yes

Wireless Bridge

Yes

Fast roaming

Pre-authentication, PMK caching and 802.11r/k/v

DCS

Yes

Load balancing

Yes

Advanced cellular coexistence

Yes

Security

________________________________________

Encryption

WEP

WPA

WPA2

WPA3

Authentication

IEEE 802.1X/ RADIUS authentication

Access management

L2-isolation

MAC filtering

Rogue AP detection

Networking

________________________________________

IPv6

Yes

VLANs

Yes

WMM

Yes

U-APSD

Yes

Management

________________________________________

Operating mode

Nebula cloud-managed

Controller-managed

Standalone

Web UI/CLI

Yes

SNMP

Yes

Physical Specifications

________________________________________

Item

Dimensions (WxDxH)(mm/in.)

125 x 130 x 35 / 4.92 x 5.12 x 1.38 (without Antenna)

Weight (g/lb.)

646 / 1.42

Packing

Dimensions (WxDxH)(mm/in.)

160 x 180 x 50 / 6.30 x 7.09 x 1.96

Weight (g/lb.)

864 / 1.90

Included accessories

Din rail mount

Two 2.4GHz/5GHz detachable antennas

MTBF (hr)

631,165

Physical Interfaces

________________________________________

Ethernet port

1 x 1/2.5GbE LAN

Power

PoE (802.3at): power draw 24W

DC input: 12V-48V redundant dual input

PoE modes

IEEE 802.3af: Not supported

IEEE 802.3at: Unrestricted

IEEE 802.3bt: Unrestricted

Environmental Specifications

________________________________________

Operating

Temperature

-25°C to 65°C/-13°F to 149°F

Humidity

10% to 90% (non-condensing)

Storage

Temperature

-40°C to 70°C / -40°F to 158°F

Humidity

10% to 90% (non-condensing)

Certifications

________________________________________

Radio

FCC Part 15C

FCC Part 15E

FCC Part 2.1091

ETSI EN 300 328

EN 301 893

Draft EN 303 687

EN 50385

EN 50665

EN IEC 62311

LP0002

EMC

FCC Part 15B

EN 301 489-1

EN 301 489-17

EN55032

EN55035

EN61000-3-2/-3

EN60601-1-2

BSMI CNS15936

Safety

EN 62368-1

IEC 62368-1

BSMI CNS15598-1
